Product List

A must for every tool crib. One end holds a 1/2x1/2 SF bushing the other end takes a 3/4x3/4 Three 1/4” clamping slots Standard bushing ID range .1405 through .5625

SP-1 STANDARD PRODUCTION BAR

BAR PIVOTS 180 DEGREES FROM THE END.

AVAILABLE IN 1/2”, 3/4” and 1” BUSHINGS

BAR PIVOTS 180 DEGREES UP/DOWN.

AVAILABLE IN BOTH 1/2 AND 3/4 INCH BUSHINGS

PE SERIES DRILL BAR

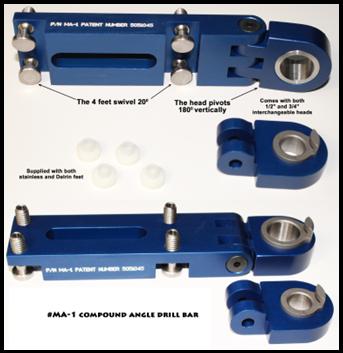

With our MA-1 drill bar you can precisely do compound angles. The 4 swivel feet pivot up to 20 degrees. The end pivots vertically 180 degrees. It is supplied with two sets of feet, stainless steel and Delrin. It is supplied with two interchangeable heads for both 1/2” x 1/2” or 3/4” x 3/4” SF or SR bushings. It has a single 3/8” slot.

It is supplied in its own case to keep all the parts together.

MICRO 1 & 2 DRILL BAR

Home

About Us

Product List

How to perform re-work

Pricing

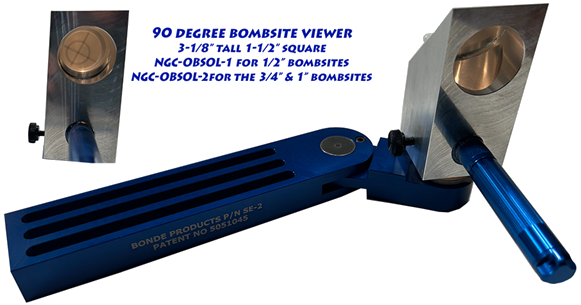

OBS BOMBSIGHT TELLS

YOU EXACTLY WHERE THE

CUTTING TOOL IS GOING

SE SERIES DRILL BAR

SP-2 STANDARD PRODUCTION BAR

SP-3 STANDARD PRODUCTION BAR

Like the SP-1 one end holds a 1/2x1/2 SF bushing the other end takes a 3/4x3/4

Except this one has a single 3/8” clamping slot and is longer than the SP-1.

It’s 8-1/4” x 1-1/2” Standard bushing ID range .1405 through .5625

Have larger holes? This one holds a 3/4”OD x 1” long bushing on one end and a

1”OD x 1” LG on the other it is 8-1/4” x 2” with a single 1/2” clamping slot

Standard bushing ID range .2812 through .7812

SP-6 STANDARD PRODUCTION BAR

Need something even larger? This one holds a 1-3/8”OD x 1” long bushing

This one measures 8-1/2” x 2-1/4” with a single 1/2” clamping slot

Standard bushing ID range .7188 through 1.0625

DE SERIES DRILL BAR

BAR PIVOTS 180 DEGREES FROM THE CENTER.

AVAILABLE IN 1/2,” 3/4” and 1” BUSHINGS

#OBS-SF-HL

34 piece Bombsight & Bushing set

16 bombsights & 16 SF drill bushings

both OL lights

In a custom fitted case with

closed cell CNC cut foam

#OBS-HL-CASE

18 piece Bombsite set

16 bombsights (no drill bushings)

both OL lights

In a custom fitted case with

closed cell CNC cut foam

THE OL LIGHT GIVES YOU FULL ILUMINATION

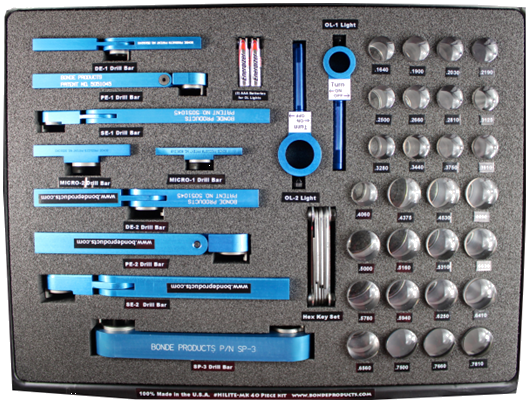

The PERFICT Combination for exact alignment !

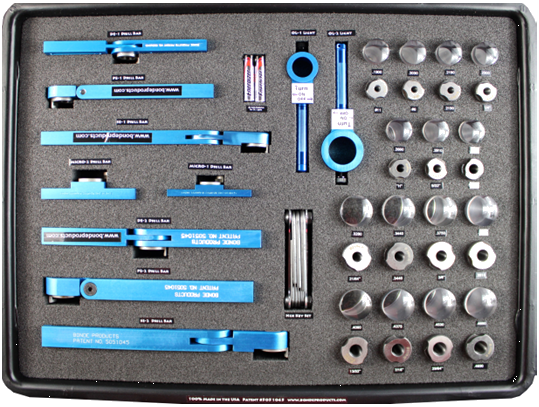

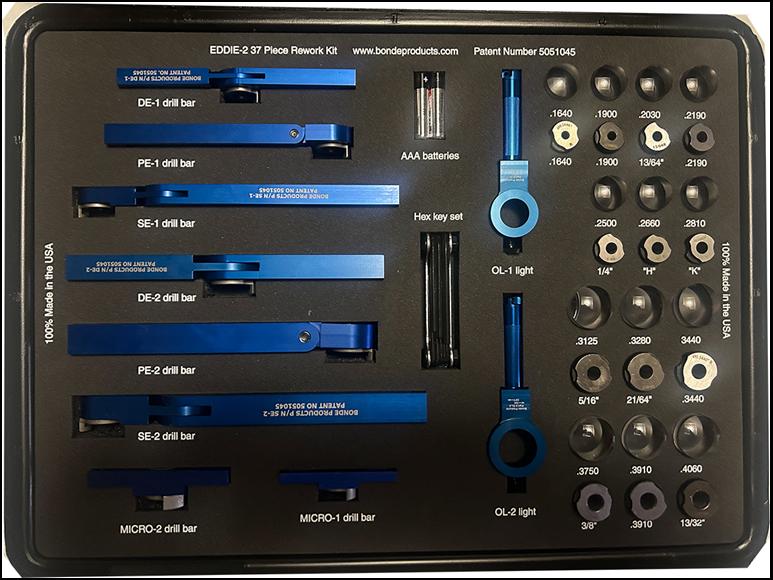

KITS CONTENTS:

8 drill bars, 15 "OBS" bombsights,

15 matching drill bushings,

both "OL" lights, hex key set

All in a custom fitted case with closed cell foam CNC cut for an exact fit. With our patented design

you will soon see just how easy rework can be.

Don't forget it is also great for laying out splices and doublers as well.

BOMBSIGHTS With a single circle & cross hairs:

(1/2”) .190, .203, .219, .250, .266, .281, .3125

(3/4) .328, .344, .375, .391, .466, .4375, .453, .469

BUSHING SIZES:

(1/2”) #11, #6, .219, 1/4, “H”, 9/32, 5/16

(3/4”) 21/64, .344, 3/8, .391, 13/32, 7/16, 29/64, .469

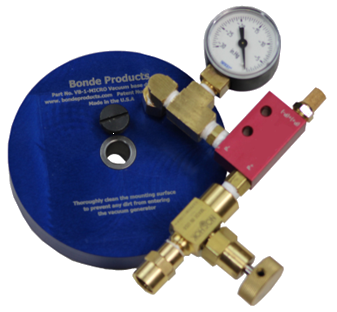

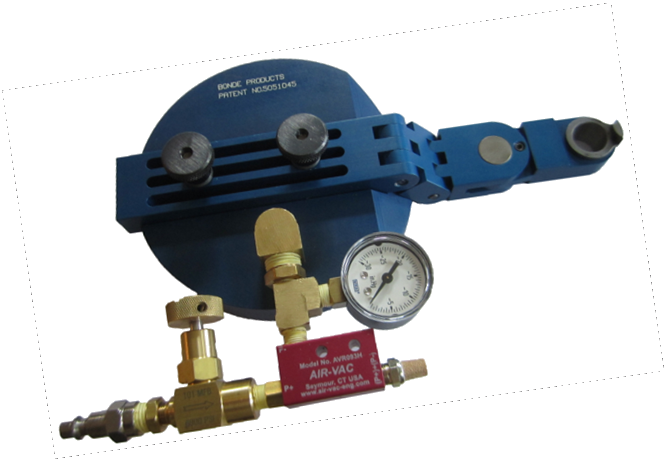

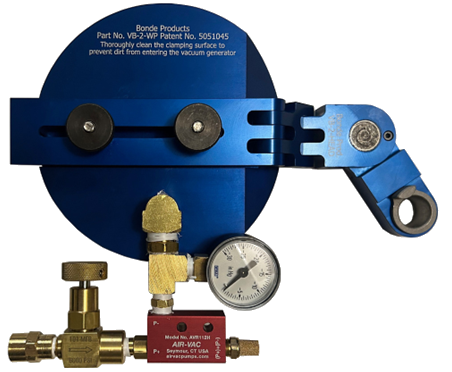

Here is our VACUUM BASE Drill Bar. It stays in place with a on board air operated vacuum generator. Creates up to 27.5Hg while only using 2.3 CFM of shop air. No need to remove a good Fastener to access that hole to clamp down the bar. Bar holds any standard SF/SR drill bushing

NOW with two heads:

1/2” & 3/4

Comes in a custom fitted case with

closed cell CNC cut foam

UPS, & Airline approved

MORE VACUUM

USING LESS C.F.M.

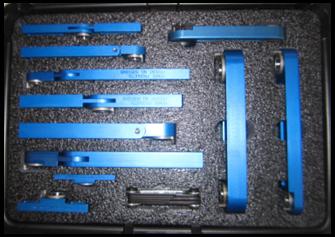

This kit comes with 11 different drill bars

DE-1 & -2, SE-1 & -2, PE-1 & -2,

MICRO-1 & -2 SP-1, SP-2, SP-3

hex key set

All in a custom fitted case UPS/Airline approved

Closed cell foam is CNC cut.

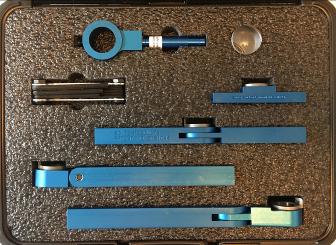

This kit comes with 4 different drill bars

Optical Light OL-1 & OBS-1-CH bombsight

DE-1, SE-1, PE-1, MICRO-1 1/2” Drill bars

OL-1 OPTICAL LIGHT OBS-1-CH Bombsight

Hex key set

All in a custom fitted case UPS/Airline approved

Closed cell foam is CNC cut.

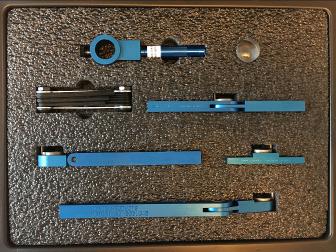

This kit comes with 4 different drill bars

Optical Light & bombsight

DE-2, SE-2, PE-2, MICRO-2 3/4” Drill bars

OL-2 OPTICAL LIGHT OBS-2-CH Bombsight

Hex key set

All in a custom fitted case UPS/Airline approved

Closed cell foam is CNC cut.

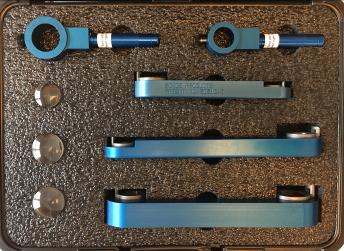

This kit comes with 3 different drill bars

2 Optical Lights & 3 bombsights

SP-1, SP-2, SP-3 Drill bars

OL-1 & OL-2 OPTICAL LIGHT

OBS-1-CH, OBS-2-CH, OBS-3-CH Bombsights

All in a custom fitted case UPS/Airline approved

Closed cell foam is CNC cut.

US patent #5051045

Cutom Made Flat Bottom Reamers Made To Order
(click here to find out more)

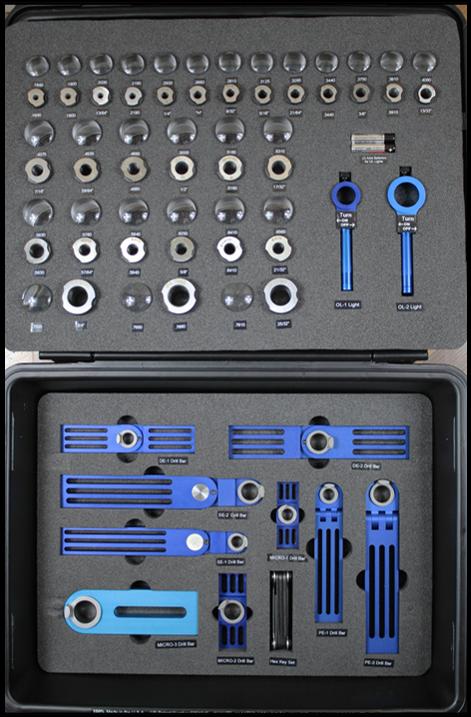

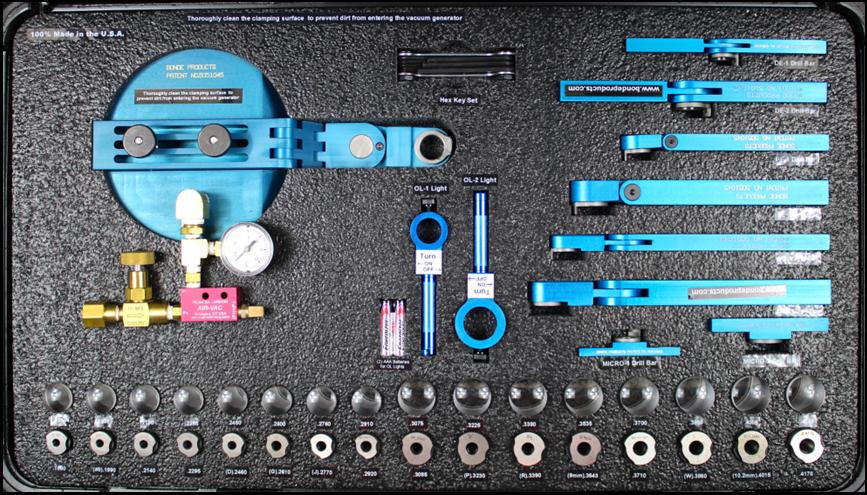

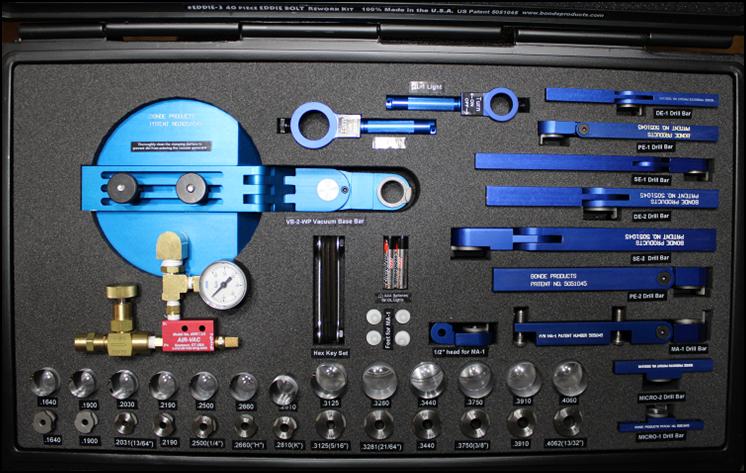

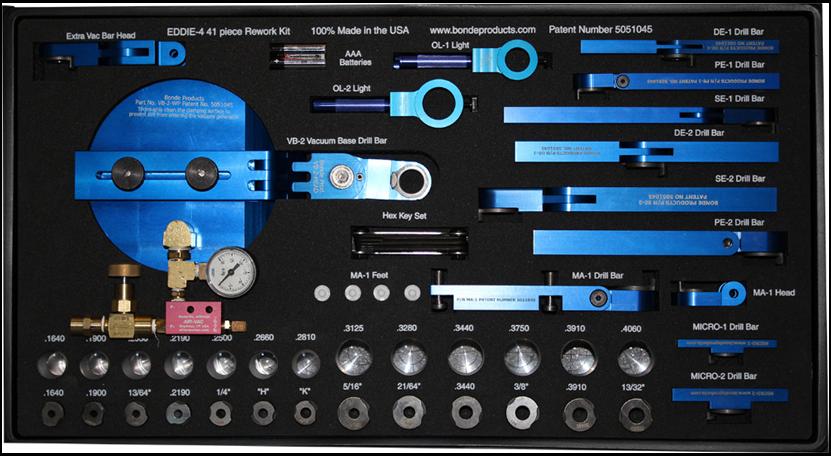

9 drill bars, 16 "OBS" bombsights,16 “SF” drill bushings both "OL" lights,

hex key set our HL-1-MK with the VB2WP Vacuum Base Bar all in one kit.

Comes in a custom fitted case with closed cell CNC cut foam for an exact fit.

This is our HL-1-MK & VB-2-WP Combined into one case

Rework: 3/16, 1/4, 5/16 & 3/8 Standard, 1st, 2nd & 3rd OS Hiloks.

KITS CONTENTS:

10 drill bars, 16 BOMBSIGHTS With a single circle & cross hairs,

16 matching bushings, both "OL" lights, hex key set

Same as our HL-1-MK with two drill bars added SP-1 & SP-2

MICRO-4 Small DRILL BAR

Limited space ? Here is the drill bar for you. It holds a 1/2” x 1/2” SF bushing and measures only 1-1/4” wide x 3” long. It has a single 3/8” wide slot 1-1/2” long and will fit into all those tight spaces.

Standard bushing ID range .1405 through .3437

MICRO-5 Small DRILL BAR

Limited space ? Here is another drill bar for you. It is also

Small like our MICRO-4 but this one holds a 3/4” x 3/4” SF bushing and measures only 1-1/2” wide x 4” long. It has a single 1/2” wide slot 2” long and will fit into all those tight spaces for those larger holes.

Standard bushing ID range .2812 through .5625

MICRO-3 Small DRILL BAR

Limited space ? Here is another drill bar for you. It is also

Small like our MICRO-4 & 5 but this one holds a 1” x 1” SF bushing and measures only 2” wide x 6” long. It has a single 1/2” wide slot 3-1/4” long and will fit into all those tight spaces for those larger holes.

Standard bushing ID range .4587 through .7812

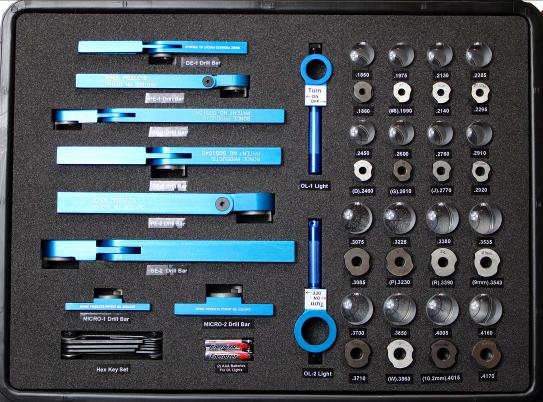

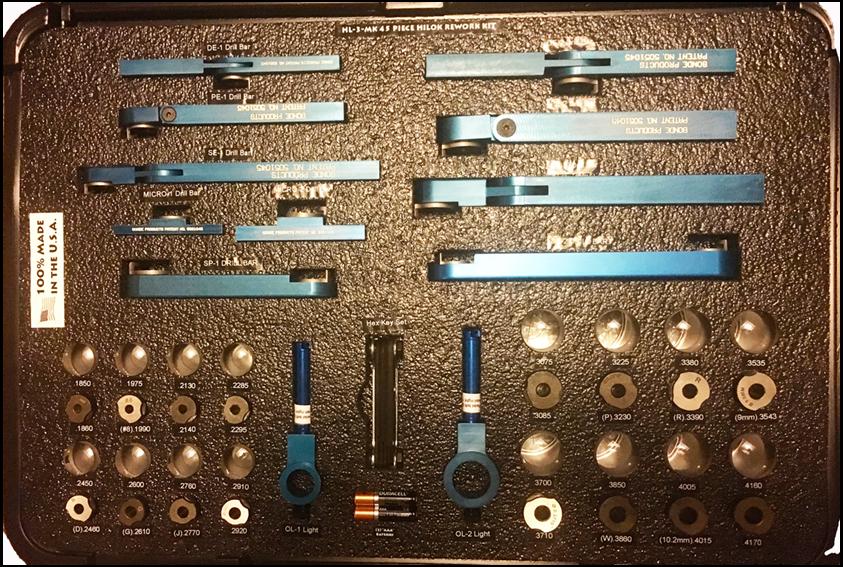

KITS CONTENTS:

8 drill bars, 16 bombsites with a single circle and cross hairs,

16 matching drill bushings, both "OL" lights, hex key set

All in a custom fitted case with closed cell foam

is CNC cut for an exact fit.

Think of it as a "solution in a case".

Now you have everything to rework

3/16, 1/4, 5/16 & 3/8 Std., 1st, 2nd & 3rd O.S. Hiloks.

With our patented design you will soon see

just how easy rework can be. Don't forget it is also

great for laying out splices and doublers as well.

BOMBSIGHTS With a single circle & cross hairs:

(1/2”).1850 .1975 .2130 .2285 .2450 .2600 .2760 .2910 (3/4).3075 .3225 .3380 .3535 .3700 .3850 .4005 .4160

BUSHING SIZES:

(1/2”) .1860, #8, .2140, .2295, D, G, J, .2920

(3/4”) .3085, P, R, 9MM, .3710, W, 10.2mm (.4016), .4170

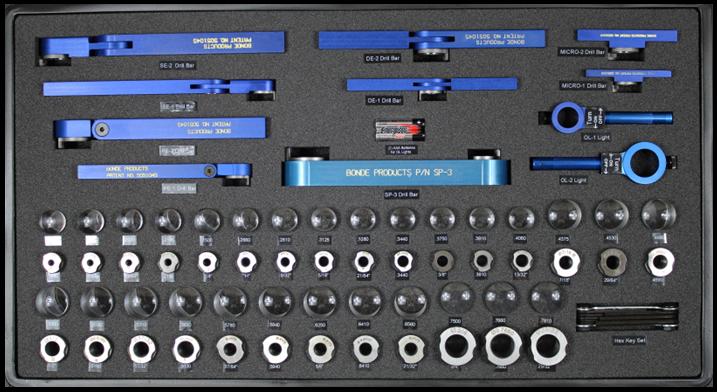

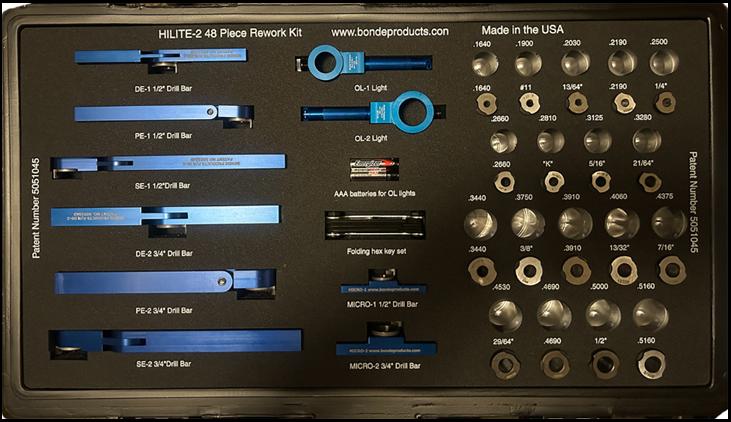

Hi-Lite Master Repair kit 68 pc kit

KITS CONTENTS: 9 drill bars, 28 Bombsites with a single circle & cross hairs,

28 matching bushings, both "OL" lights, hex key set

All in a custom fitted case with closed cell foam CNC cut for an exact fit.

With our patented design you will soon see just how easy rework can be.

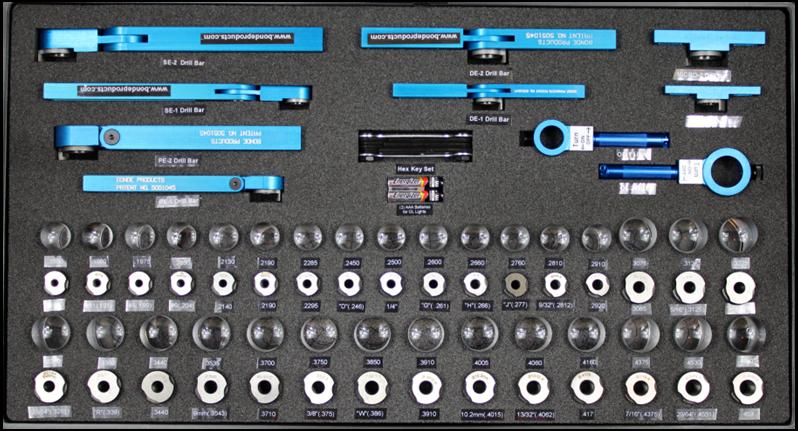

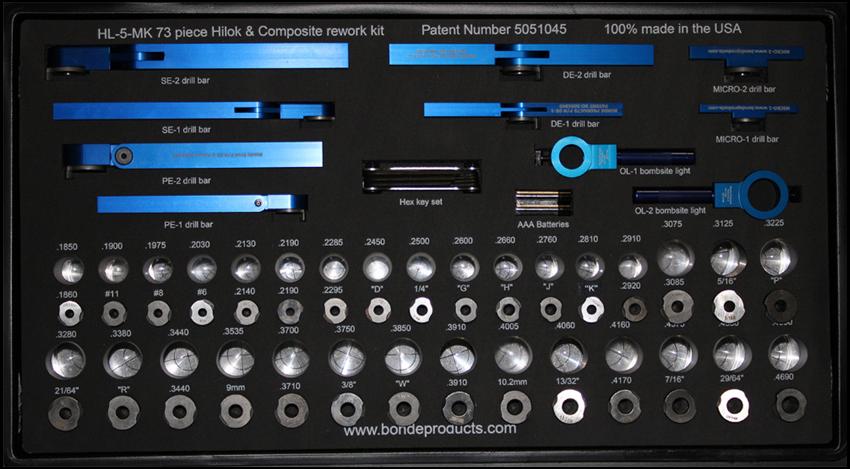

KITS CONTENTS:

8 drill bars, 31 BOMBSIGHTS With a single circle & cross hairs, 31 matching bushings, both "OL" lights

This is our HL-1-MK kit combined with our HL-1-COMPOSITE all in a single case.

All in a custom fitted case with closed cell foam CNC cut for an exact fit.

31 Bombsites with a single circle & cross hairs: .

(1/2”) .185 .190 .1975 203 .213 .219 .2285 .245 .250 .266 .2765 .281 .291

(3/4”) .3075 .3125 .3225 .328 .338 .344 .3535 .370 .375 .385 .391 .4005 .406

.416 .4375 453 .469

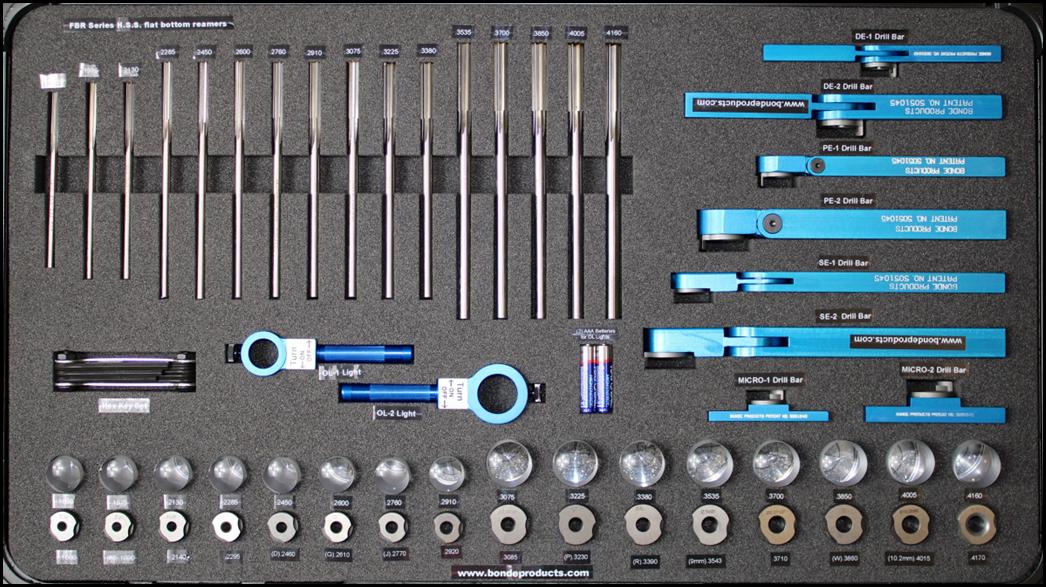

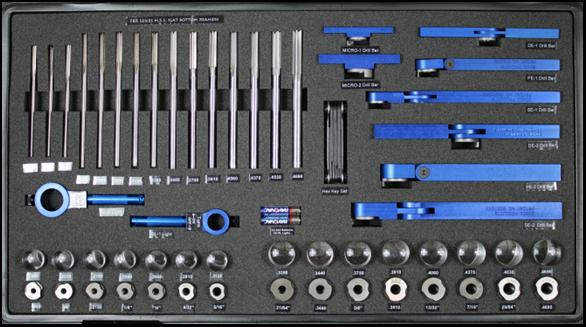

KITS CONTENTS:

8 drill bars,

15 Bombsites with a single circle and cross hairs,

15 matching drill bushings,

15 H.S.S. flat bottom reamers

both "OL" lights, hex key set

All in a custom fitted case with closed cell foam CNC cut for an exact fit. With our patented design you will soon see just how easy rework can be. Don't forget it is also great for laying out splices and doublers as well.

This is our HL-1-COMPOSITE (shown above)

with a set of matching H.S.S. flat bottom reamers
