Bonde ProductsUS patent #5051045Increase production while reducing re-workEDDIE-3, 4 & 5
Eddie bolt rework kits
Double wall case
UPS & Airline approved
Closed cell foam CNC cut
Text Box: DE-1 & DE-2
Text Box: SE-1 & SE-2
Text Box: PE-1 & PE-2
Text Box: 31 Bombsites
7 pcs 1/2” OBS-1
6 pcs 3/4” OBS-2
Text Box: MICRO-1 & MICRO-2
Text Box: 31 SF Bushings
7 pcs 1/2” x 1/2”
6 pcs 3/4” x 3/4”
Text Box: OL-1 & OL-2
EDDIE-4 Same as above less the vacuum base barEDDIE-3EDDIE-4Text Box: VB-2-WP
EDDIE-3 Only
Text Box: MA-2
EDDIE-5 Just the bombsites, bushings and OL lightsEDDIE-5

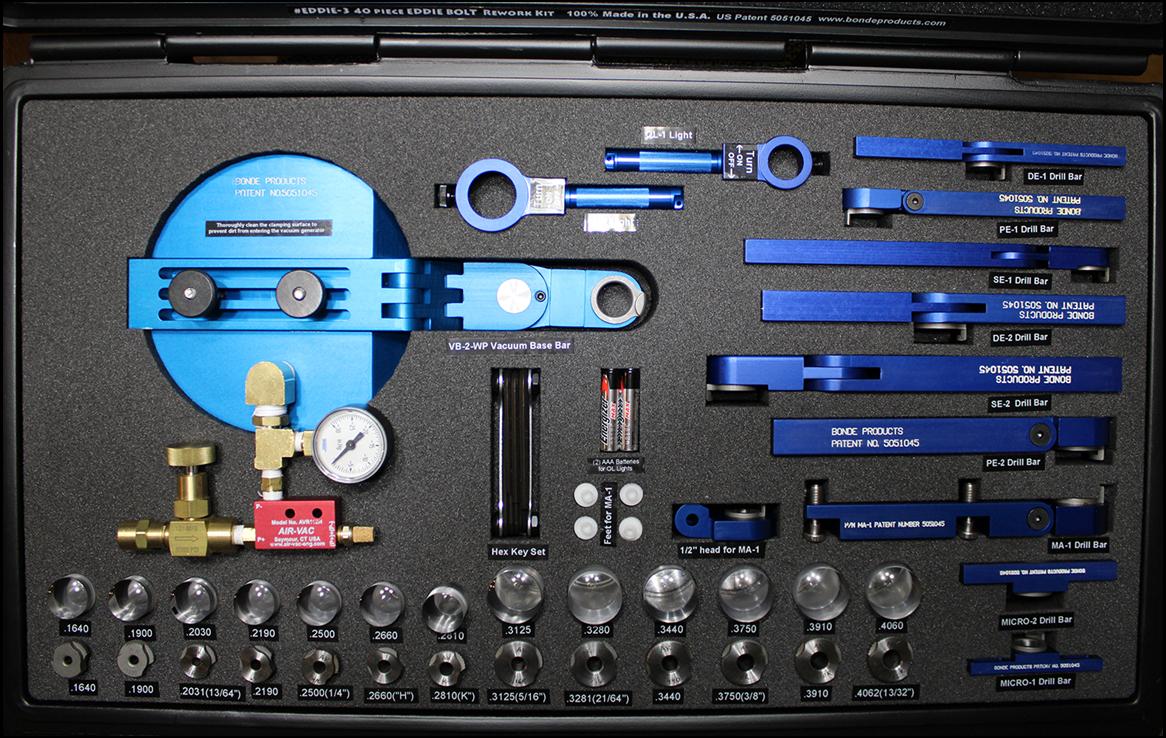

EDDIE-3 Contents: 40 piece kit (W/ Vac Bar)

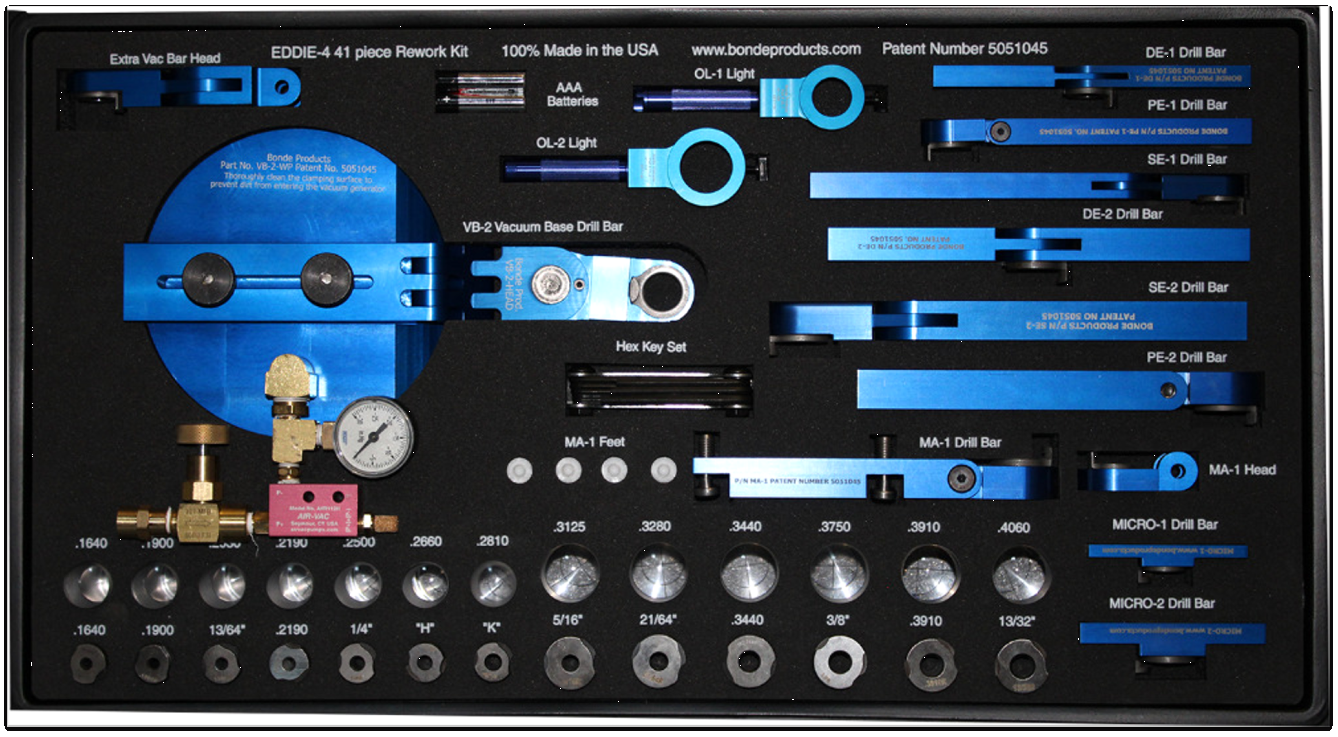

EDDIE-4 Contents: 39 piece kit (W/O VacBar)

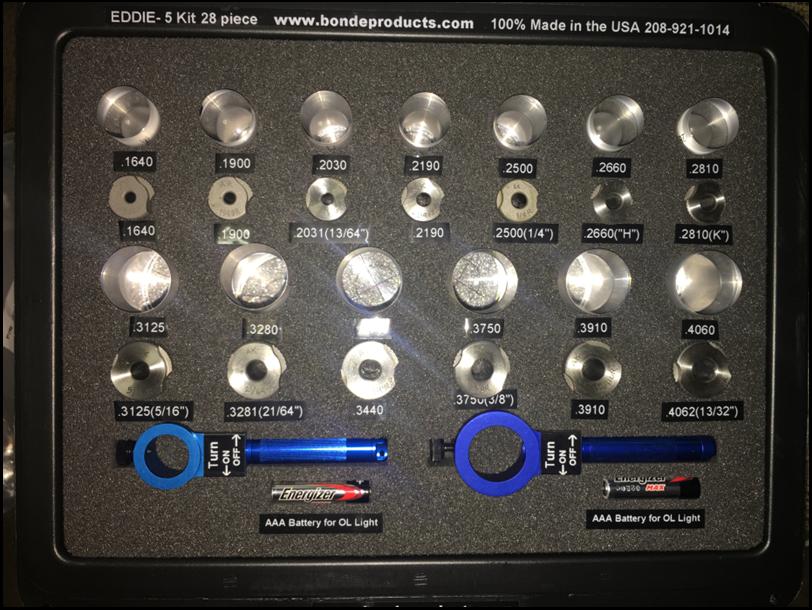

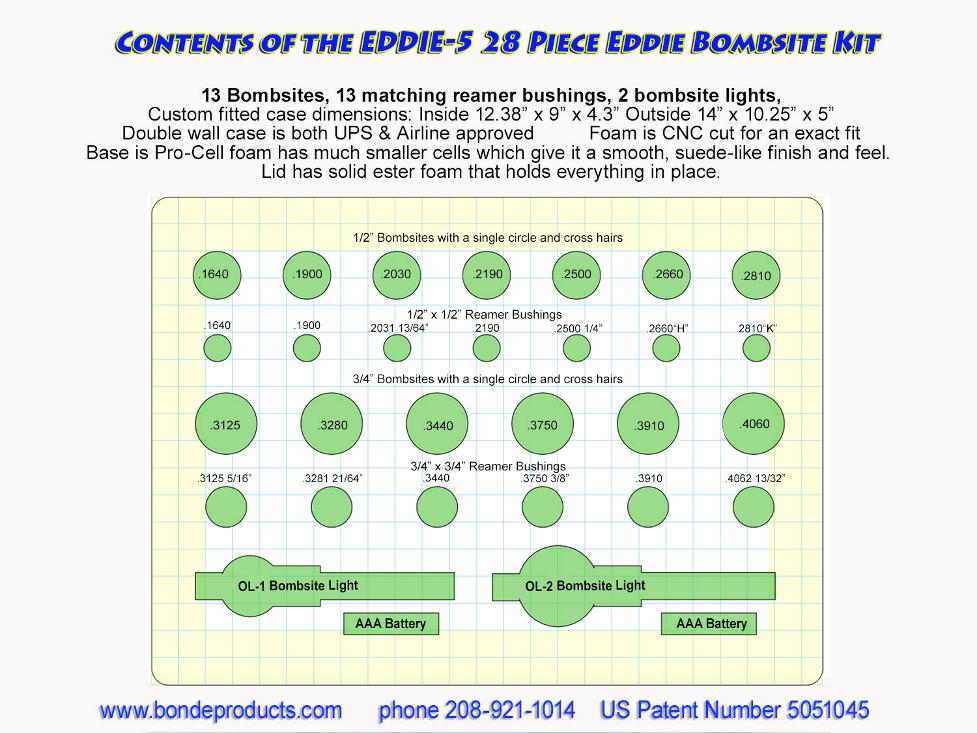

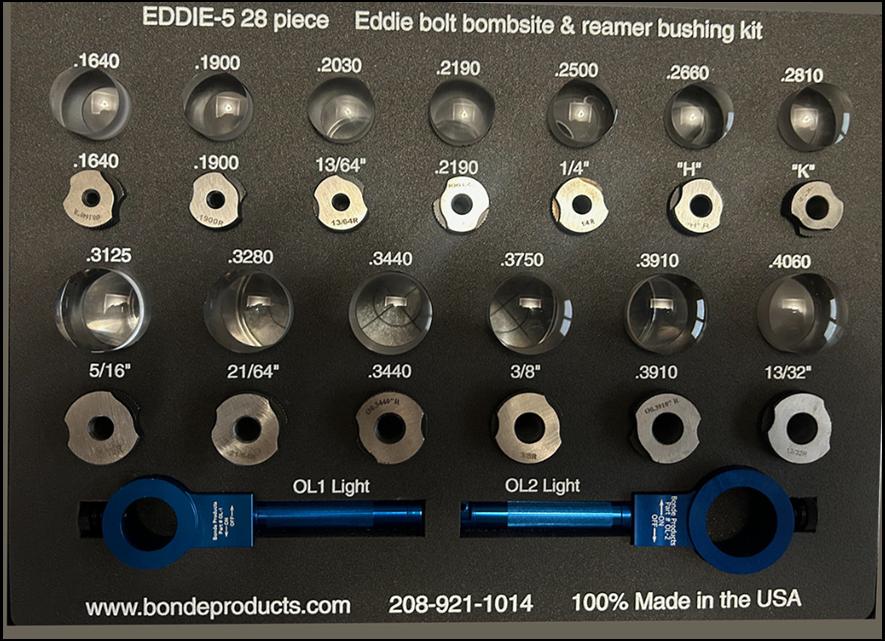

EDDIE-5 Contents: 28 piece kit (NO BARS)



EDDIE-3 10 Drill Bars: DE1, DE2, SE1, SE2, PE1, PE2, MICRO1, MICRO2, MA-1, VB-2-WP

EDDIE-4 9 Drill Bars: DE1, DE2, SE1, SE2, PE1, PE2, MICRO1, MICRO2, MA-1, no VacBar

EDDIE-5 NO Bars: Just the bombsites, bushings and OL lights

ALL KITS: 13 Bombsites with a single circle & cross hairs,

13  Matching SF bushings, both "OL" lights, hex key set

UPS & Airline approved double wall custom fitted case with precision CNC cut foam

BOMBSIGHT CIRCLE SIZES:

(1/2”) .1640 , .1900, .2030, .2190, .2500, .2660, .2810

(3/4).3125, .3280, .3440, .3750, .3910, .4060

BUSHING SIZES:

(1/2”) .1640, .1900, .2031(13/64”), .2190, .2500(1/4”), .2660(H), .2810(K)

(3/4”)  .3125(5/16”), .3281(21/64”), .3440, .3750(3/8”, .3910, .4062(13/32”)
