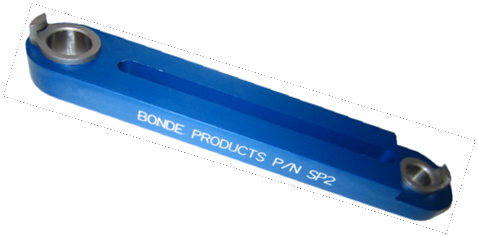

The SP-2 standard production bar. Like the SP-1 above one end holds a 1/2" O.D. X 1/2" LG., the other holds a 3/4" X 3/4" bushing. It has a single 3/8” slot and is a couple of inches longer than the SP-1. This bar measures 8-1/4” Long x 1-1/2” Wide. Standard bushing ID range .1405 through .5625 |
|

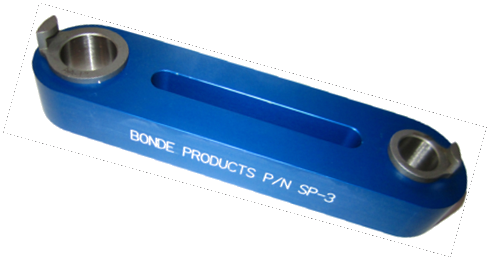

The SP-3 standard production bar. Need a bigger bar? This one has a single 1/2” slot. One end holds a 3/4”O.D. x 1” LG. bushing, 1”O.D. x 1” LG. bushing on the other side. The bar measures 8-1/4” Long x 2” Wide. Standard bushing ID range .2812 through .7812 |
|

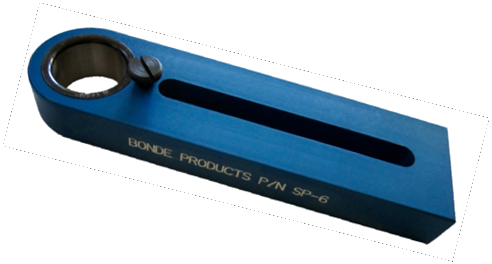

The SP-6 standard production bar. Have even larger holes? This is big brother. This one has a single 1/2” slot. It holds a 1-3/8”O.D. x 1” LG. bushing, The bar measures 8-1/2” Long x 2-1/4” Wide. Standard bushing ID range .7188 through 1.0625 |
|

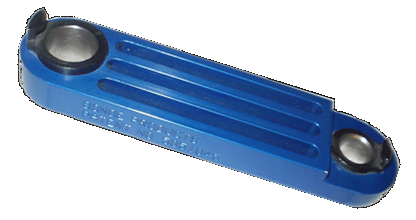

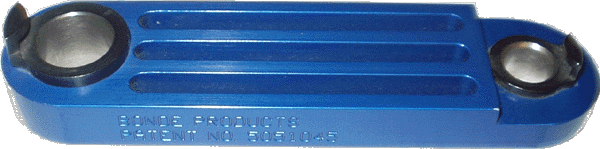

The SP-1 standard production bar. Trying to lay out a splicer or doublers? One end holds a 1/2" O.D. X 1/2" LG, the other holds a 3/4" X 3/4" bushing. It comes with three 1/4” slots to increase clamping positioning, or may also be clamped down with c-clamps. Bar measures 6” x 1-1/2”. Standard bushing ID range .1405 through .5625
|
